Ceramic Wire Nuts: When to Use Them, Temperature Ratings, Oven & Fixture Wiring
Quick answer: Use ceramic (porcelain) wire nuts when a splice sits in sustained heat that would age a plastic connector: oven and range wiring, heater compartments, and high-temperature lighting such as porcelain lampholders. Match the connector's marked temperature rating to the conductor insulation and to the equipment instructions. Ceramic wire nuts handle heat, not water, so never use them for wet, outdoor or buried splices.
This guide covers what makes ceramic wire nuts different, what the NEC and UL listings ask for in hot locations, where ceramic belongs, how to install one, the mistakes that cause failures, and how ceramic compares with other high-temperature splicing methods. Need them now? See Dicio ceramic wire connectors (50 pcs), or ask about volume pricing for service fleets and supply counters.
What Makes Ceramic Wire Nuts Different
A ceramic wire nut works like any twist-on connector: a tapered metal spring threads onto the twisted conductors and holds them under pressure. The difference is the shell. Instead of thermoplastic, the shell is fired porcelain.
A porcelain shell instead of thermoplastic
Standard wire nuts use thermoplastic shells that soften, discolor and turn brittle when they sit in heat for years. Porcelain does not soften at the temperatures found in ovens, heater housings or lamp sockets. That is why ceramic connectors show up in appliance service and fixture work, and why electricians in Canada often call them ceramic marrettes.
Shell temperature is not the same as the splice rating
This is the point most buyers miss. Ceramic shells are often advertised with very high temperature figures; some distributors list ceramic wire nuts at up to 1,000 °F. But a splice is only as heat-tolerant as its weakest part: the spring, the conductor insulation, and the temperature the connector is actually marked or listed for. UL-listed high-temperature twist-on connectors are commonly rated around 150 °C (302 °F). Read the temperature rating printed on the package, not the material in the product name.
Heat-resistant does not mean waterproof
Porcelain does not seal against moisture. A ceramic wire nut is not a substitute for a sealed connector in a wet, damp or buried location. For those jobs see our waterproof wire connector installation guide.
What the NEC and UL Listings Require in Hot Locations
The NEC does not require ceramic connectors by name. It requires that every part of a hot splice be suitable for the temperature. Check the edition your jurisdiction has adopted.
Follow the listing and the equipment instructions (110.3(B))
Listed equipment must be installed according to the instructions in its listing or labeling. If an oven, heater or luminaire manual calls for high-temperature connectors or wire, that is the requirement for the repair.
Splices must be identified for the use (110.14(B))
Conductors must be spliced with devices identified for the use, and the splice must be insulated equivalent to the conductors. A connector that is not suitable for the temperature in the compartment does not meet that bar.
Conductors in luminaire outlet boxes (410.21)
A luminaire must be built or installed so the conductors in its outlet box are not subjected to temperatures greater than those they are rated for. Heat from the lamp is the reason many fixtures specify high-temperature supply conductors, and the splice has to survive the same heat.
What UL 486C does and does not tell you
Twist-on splicing connectors are evaluated under UL 486C. Its tests are run for currents up to the ampacity of 75 °C or 90 °C conductors, depending on the connector's rating. A higher temperature rating, when a connector has one, is marked separately. That is why the package marking matters more than the shell material. Our UL 486 standards guide explains each listing.
Use wire rated for the heat
High-temperature fixture and appliance wire is rated well above ordinary building wire. Silicone-insulated SF-2 fixture wire, for example, is rated 200 °C. A ceramic connector on 60 °C or 90 °C building wire in a 150 °C compartment still fails at the insulation.
Where Ceramic Wire Nuts Make Sense

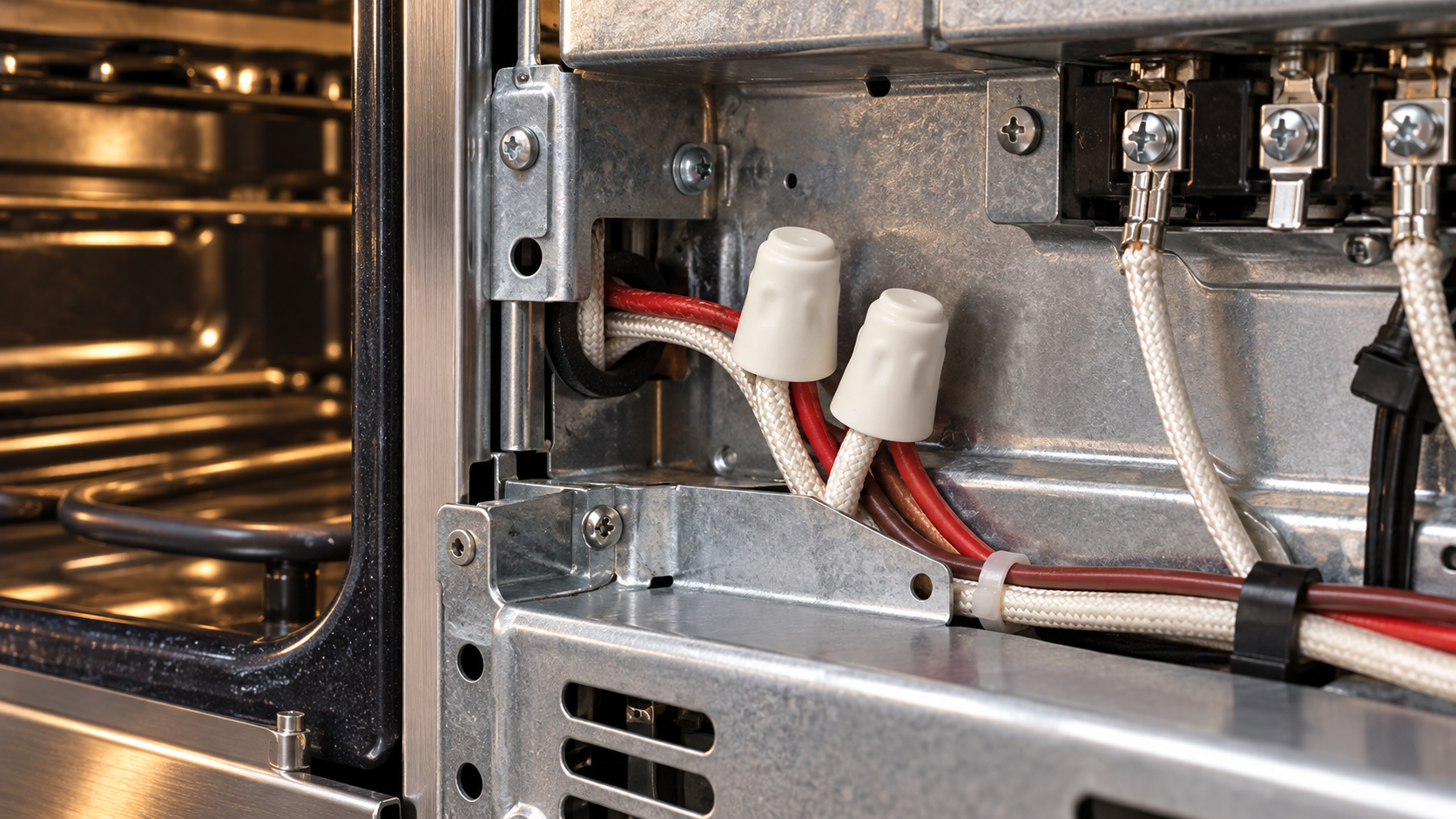

- Ovens, ranges and broilers: splices near bake and broil elements, oven light sockets and terminal blocks inside the cabinet.
- Heater compartments: baseboard and wall heaters, electric heat strips in air handlers, and warming cabinets, where the splice sits close to the element.
- High-temperature lighting: porcelain lampholders, enclosed incandescent or halogen fixtures, and older fixtures that run hot at the socket.
- Commercial and light industrial equipment: heat sealers, food warmers and process heaters, when the manufacturer calls for high-temperature splices.
Where ceramic does not make sense: everyday branch-circuit splices in a cool junction box. A standard listed wire nut or lever connector is faster and cheaper there. Ceramic is a specialty part for a specific problem.
How to Install a Ceramic Wire Nut: Step by Step
- Turn off and verify power. Shut off the breaker or unplug the appliance, then test with a meter or non-contact tester.
- Find out why the old splice failed. A melted or charred plastic connector means the location runs hot. Note the distance to the element or lamp.
- Cut back heat-damaged wire. Insulation that is brittle, cracked or discolored has lost its rating. Cut back to sound insulation, or replace the lead with high-temperature wire of the correct type.
- Check the rating and size. Confirm the connector's marked temperature rating and wire range, and that your combination is on the package chart.
- Strip to the package length. Too long leaves bare copper below the skirt; too short gives the spring too little to grip.
- Twist on by hand, clockwise. Turn until the conductors below the skirt begin to twist together. Do not use pliers on the porcelain; it can crack.
- Tug-test every conductor. Pull each wire individually. None should move.
- Route away from the heat source. Keep the splice and leads off the element or lamp, use high-temperature sleeving where the manual calls for it, and reinstall covers and shields.
Sizing: Dicio Ceramic Wire Connector Range
Size by the wire range and the package combination chart. Both sizes below come 50 to a pack.
| Model | Wire range | Pack | Price |
|---|---|---|---|
| 173M | 22–12 AWG | 50 pcs | $16.99 |
| 173L | 22–14 AWG | 50 pcs | $19.99 |
| Shell | Porcelain (ceramic), twist-on | ||
Count every conductor in the splice, and stay within the minimum and maximum combinations printed on the package. If you have more conductors than the chart allows, split the splice or use a terminal block rated for the temperature. Fixture and appliance leads are often fine stranded wire, which is the easiest to under-grip, so confirm the chart lists the stranded combination you plan to splice.
Common Mistakes With High-Temperature Splices
Putting a plastic wire nut back in a hot compartment
If the old connector melted, the new plastic one will too. Replace like for like with a connector rated for the heat, or follow the manufacturer's repair part.
Rating the connector but not the wire
The insulation is usually the first thing to fail. Use high-temperature wire for leads that run near the heat source.
Trusting a material instead of a marking
"Ceramic" in a product name is not a temperature rating. Use the rating printed on the package and in the equipment manual.
Using ceramic outdoors or in wet locations
Porcelain does not seal. Wet, damp and buried splices need sealed connectors listed for the location.
Cranking it with pliers
Porcelain is hard but brittle. A cracked shell can expose the spring. Hand-tighten until the conductors twist below the skirt.
Splicing aluminum
Use connectors marked for aluminum when aluminum conductors are involved. Do not assume a ceramic connector is rated for aluminum.
Ceramic Wire Nuts vs. Other High-Temperature Splicing Methods
| Method | Best for | Trade-off |
|---|---|---|
| Ceramic (porcelain) twist-on | Hot compartments in appliances and fixtures | Brittle; check the marked rating and listing |
| High-temperature thermoplastic twist-on | Warm locations within its rating (some are listed to 150 °C / 302 °F) | Plastic shell still has a ceiling |
| Standard thermoplastic twist-on | Cool junction and device boxes | Not for hot compartments |
| Crimp splice with high-temperature sleeving | Permanent appliance leads, vibration | Needs the right crimp tool and sleeving |
| Ceramic terminal block | Several conductors, serviceable connections | Bulkier; needs mounting |
How to Choose Ceramic Wire Connectors
- Marked temperature rating that meets or beats the equipment instructions.
- Wire range and combination chart that cover your conductors, including fine fixture leads.
- A clear listing or spec sheet you can show an inspector or a facilities manager. See how Dicio documents its approvals.
- Pack size that matches the work: 50-piece packs suit service vans and appliance repair shops.
Dicio ceramic wire connectors
- Dicio Ceramic Wire Connectors: 173M (22–12 AWG) and 173L (22–14 AWG), 50 pcs per pack.
- For standard dry-location splices, the winged twist-on wire connectors and case packs cost less per splice.
Frequently Asked Questions
Do I need ceramic wire nuts for an oven?
If the splice sits in the heated cabinet or near an element, use a connector rated for that temperature, which is often a ceramic one. Follow the oven manufacturer's service instructions for the exact part and wire type.
What temperature can ceramic wire nuts handle?
It depends on the product. The porcelain shell tolerates far more heat than the splice as a whole, so use the temperature rating marked on the package. Listed high-temperature twist-on connectors are commonly rated around 150 °C (302 °F).
Are ceramic wire nuts UL listed?
Some are and some are not. Look for the UL mark and the standard on the package, typically UL 486C for twist-on splicing connectors, and a marked temperature rating.
Can I use ceramic wire nuts outside?
No. Ceramic wire nuts are not sealed against water. Use a sealed connector listed for wet or direct-burial locations, or a listed connector inside an enclosure rated for the environment.
What are ceramic marrettes?
"Marrette" is the common Canadian word for a twist-on wire connector. Ceramic marrettes are porcelain-shell wire nuts used for high-temperature splices.
What wire should I use with ceramic wire nuts?
Use conductors rated for the temperature at the splice, such as high-temperature fixture or appliance wire specified by the equipment manufacturer. Silicone SF-2 fixture wire, for example, is rated 200 °C.
Can ceramic wire nuts be used with aluminum wire?
Only if the package marks the connector for aluminum. Otherwise use a connector listed for aluminum or copper-to-aluminum splices.
Buying for a Service Fleet or a Counter?
Appliance repair companies, HVAC contractors and electrical distributors can ask about volume pricing and stocking for Dicio ceramic connectors. Talk to our team, or see Dicio PRO for samples and trade pricing on Dicio's core connector lines.
This guide is general information based on the NEC and published UL standard scopes. Always follow the code edition and local amendments adopted by your authority having jurisdiction, the equipment manufacturer's service instructions, and the instructions on the product package.
