A Data Center Cable Management Example That Works
A server outage can start with something as ordinary as a patch cord pulled too tightly behind a rack. This data center cable management example shows how to build a rack layout that keeps network, fiber, and power cabling traceable, protected, and accessible when technicians need to make a change under pressure.
The goal is not to make every rack look identical. The goal is to create a repeatable system: cables have defined paths, labels identify both ends, bend radius is protected, and service loops are controlled instead of stuffed into open rack space. That approach reduces troubleshooting time and helps prevent accidental disconnections during moves, adds, and changes.

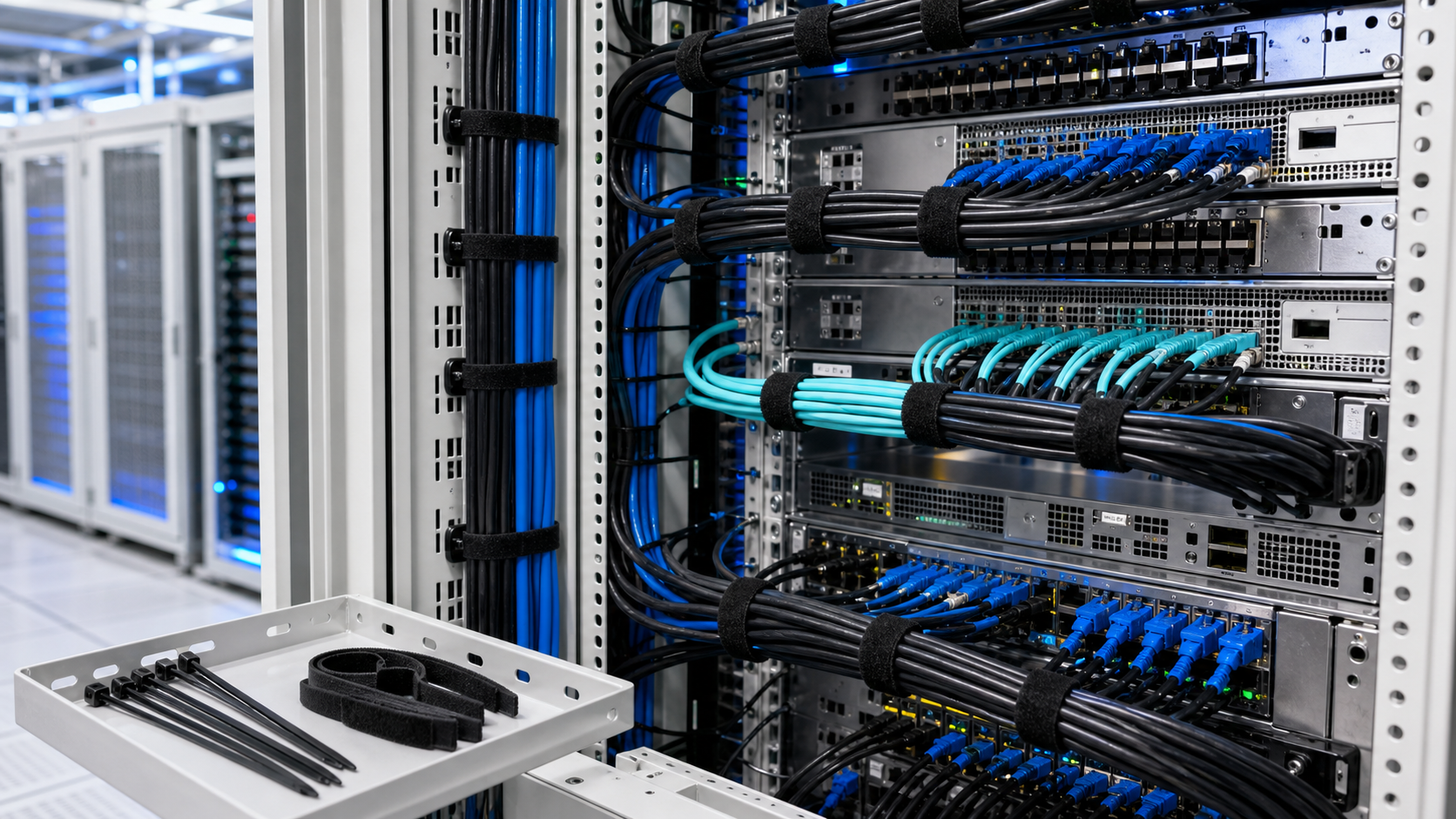

The data center cable management example: a 42U network rack
Consider a 42U cabinet serving a row of application servers. The rack has two top-of-rack switches at the top, servers from U8 through U38, vertical cable managers on both front sides, and separate vertical pathways at the rear for power cords.
The front of the rack carries the structured network side. Copper patch cords run from each server to the switch ports through horizontal managers, then into the front vertical managers. The rear carries equipment power cords routed to two separate PDUs, usually identified as A and B feeds. Fiber uplinks leave the top switches through a dedicated overhead fiber trough rather than sharing a crowded channel with copper bundles.
This separation matters. Network troubleshooting is faster when patching is visible at the front. Power service is safer when cords remain at the rear and are not crossed with low-voltage communications cabling. Fiber deserves its own protected route because crushing, kinking, or over-bending it can cause signal loss that is difficult to spot by eye.
A practical rack standard might use blue Category 6A cords for production network connections, yellow cords for management traffic, and aqua or violet fiber jackets according to the facility's fiber identification plan. Colors help, but they do not replace labels. A color scheme can drift over time. A machine-readable, durable label at both ends of every cable provides the record that technicians can trust.
Start with pathways, not cable ties
Cable management begins before the first cord is installed. Measure the route from the equipment port to the patch field or switch, including the full path through horizontal managers, vertical managers, overhead trays, and cabinet entry points. Ordering cords based only on straight-line distance leads to excess slack or cables that are barely long enough.
For copper data cords, 24 AWG to 26 AWG patch cords are common inside racks. Thinner 26 AWG cords save space in high-density switch fields, but they can be less durable when repeatedly handled. A 24 AWG patch cord generally tolerates repeated moves better, though it occupies more pathway space. Choose based on port density, handling frequency, and the cable manufacturer's performance rating.
Do not treat power cabling the same way. Equipment power cords may use 14 AWG or 12 AWG conductors depending on load, plug type, and circuit requirements. They are physically larger and should have a separate route from communications cabling whenever the rack design allows. Follow applicable electrical code, equipment instructions, and the facility's approved power distribution plan. Do not overload a pathway or force a power cord into a manager designed only for patch leads.
Above the rack row, use tray, ladder rack, or enclosed trough systems sized for future growth. A pathway that is already full on installation day has no service margin. Leave usable capacity for adds and replacements, and avoid piling new cables on top of abandoned ones.
Protect bend radius and cable performance
A cable that passes a continuity test can still be poorly installed. Tight turns can degrade performance, especially for fiber and high-performance twisted-pair cabling.
For fiber, follow the cable manufacturer's bend-radius instruction. A common field rule is to maintain at least 10 times the cable outside diameter when the cable is not under tension and a larger radius, often 15 times the outside diameter, while pulling. The actual requirement depends on the fiber construction. Use curved guides, spool management, and properly sized trough corners instead of sharp metal edges or improvised loops.
Category 6 and Category 6A cables also need room to turn. Avoid flattening bundles with overtightened ties, and do not kink cords at the switch port. Excessive compression can change cable geometry and affect transmission performance. Hook-and-loop straps are usually the better choice for patch cords because they spread pressure across the bundle and are easy to reopen during service.
Nylon cable ties are useful for permanent pathway work, cable support, and organized wiring duct installations when installed with the correct tension. Select cable ties rated for the environment and verify any required listing, such as UL 62275, on the product packaging or specification sheet. Cut tie tails flush. Sharp tails can cut technicians' hands and snag nearby cables.
A five-step installation process
A clean result comes from a controlled installation sequence, not from trying to organize a full rack after it is already cabled.
1. Map every connection before pulling cable. Record the rack, rack unit, device name, port number, destination, cable type, and required length. Confirm whether the path is copper, fiber, or power before assigning a route.
2. Install management hardware first. Fit horizontal managers, vertical fingers, cable rings, overhead pathways, brush panels, and entry protection before servers and patch cords fill the rack. Make sure cabinet doors can close without pressing on cable bundles.
3. Pull by route and service group. Install fiber first in its dedicated pathway, then copper data cabling, then power cords in their separate rear route. Keep enough service loop for a planned device move, but do not create large coils that block airflow or hide labels.
4. Label both ends immediately. A label should identify the source device and port, destination device and port, and circuit or network purpose where applicable. Place it where a technician can read it without disconnecting the cable.
5. Inspect before turnover. Verify bend radius, port strain relief, pathway fill, door clearance, grounding continuity where required, and complete documentation. Test copper links and fiber links using the facility's approved certification or validation process.
Use vertical managers to control density
The vertical manager is often the difference between a serviceable cabinet and an unworkable one. In a high-density rack, patch cords should enter the vertical manager at each device level, travel vertically in a controlled channel, then exit only where needed. They should not drape across server faces or hang across rear exhaust zones.
Use horizontal managers sparingly but deliberately. A 1U manager under a switch can guide patch cords into the vertical channel. Larger 2U or 3U managers may be necessary below high-port-count switches, but they consume valuable rack space. It depends on port density and cable diameter. A 48-port switch using Category 6A cords can require more management depth than a low-density access switch using slim cords.
Wiring duct can be effective inside network enclosures, automation cabinets, and supporting control panels. Choose duct with enough finger width and depth for the expected fill, and leave room for future conductors. If duct edges are cut in the field, remove burrs and install edge protection where cable jackets could be damaged.
Keep airflow and service access in the plan
Cable management is also thermal management. At the rear of a server, uncontrolled power and network cords can block exhaust airflow, interfere with fan replacement, and make it hard to identify failed components. Route cords along cabinet sides whenever possible, keeping the center rear area open for air movement and service access.
Avoid long cable coils beneath raised floors or above cabinets. They consume pathway capacity and can become a tangled obstacle during emergency work. If a service loop is necessary, use a measured loop secured in a designated management area. Do not use the loop as a place to hide excess length.
For raised-floor installations, protect cables at floor openings with brush grommets or properly sized edge guards. For overhead installations, ensure tray supports, dropouts, and fasteners are suitable for the load. Data cabling should not be supported by ceiling grid wire, sprinkler pipe, or other building systems not intended for that purpose.
A real change-management scenario
A technician needs to replace a failed server in U24. In a poorly managed rack, the technician pulls several unidentified patch cords forward to reach the chassis, putting adjacent links at risk. In the planned rack, each connection is labeled, the cords are held in a front vertical manager, and the rear A and B power cords follow separate routes. The technician can document the disconnects, release reusable hook-and-loop straps, swap the server, and restore each connection without disturbing neighboring equipment.
That difference is especially valuable in colocation rooms, small enterprise server closets, and edge data centers where one cabinet may carry critical services without a large operations team on site. Clear routing lowers the chance that a routine replacement becomes an extended outage.
For bulk builds, standardize the cable-management parts as carefully as the cables themselves. Dicio cable ties and wiring duct accessories can support repeatable organization for racks, support panels, and equipment rooms, but select the correct material, size, and environmental rating for the installation. A cable tie that works in a conditioned indoor cabinet may not be appropriate for a hot, exposed, or chemical-prone area.
The best rack is not the one with the most accessories. It is the one a technician can understand in seconds: every cable has a path, every path has capacity, and every change can be completed without guessing.
